Revit Class Work: Building a Law Office

This was the main project for my Revit class following the exercises from the book: "Design Integration Using Autodesk Revit 2020". It took us step by step through the process of building a commercial building. In the end we had a full law office building.

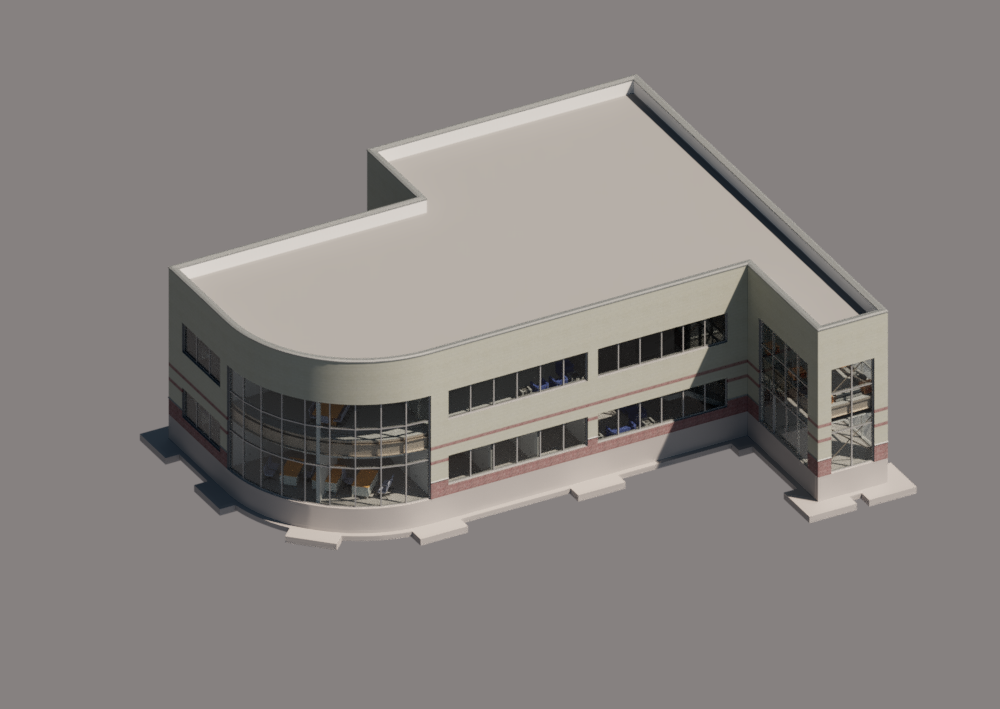

The law office where we completed it. there were a few more chapters, but we did not go all the way through the book

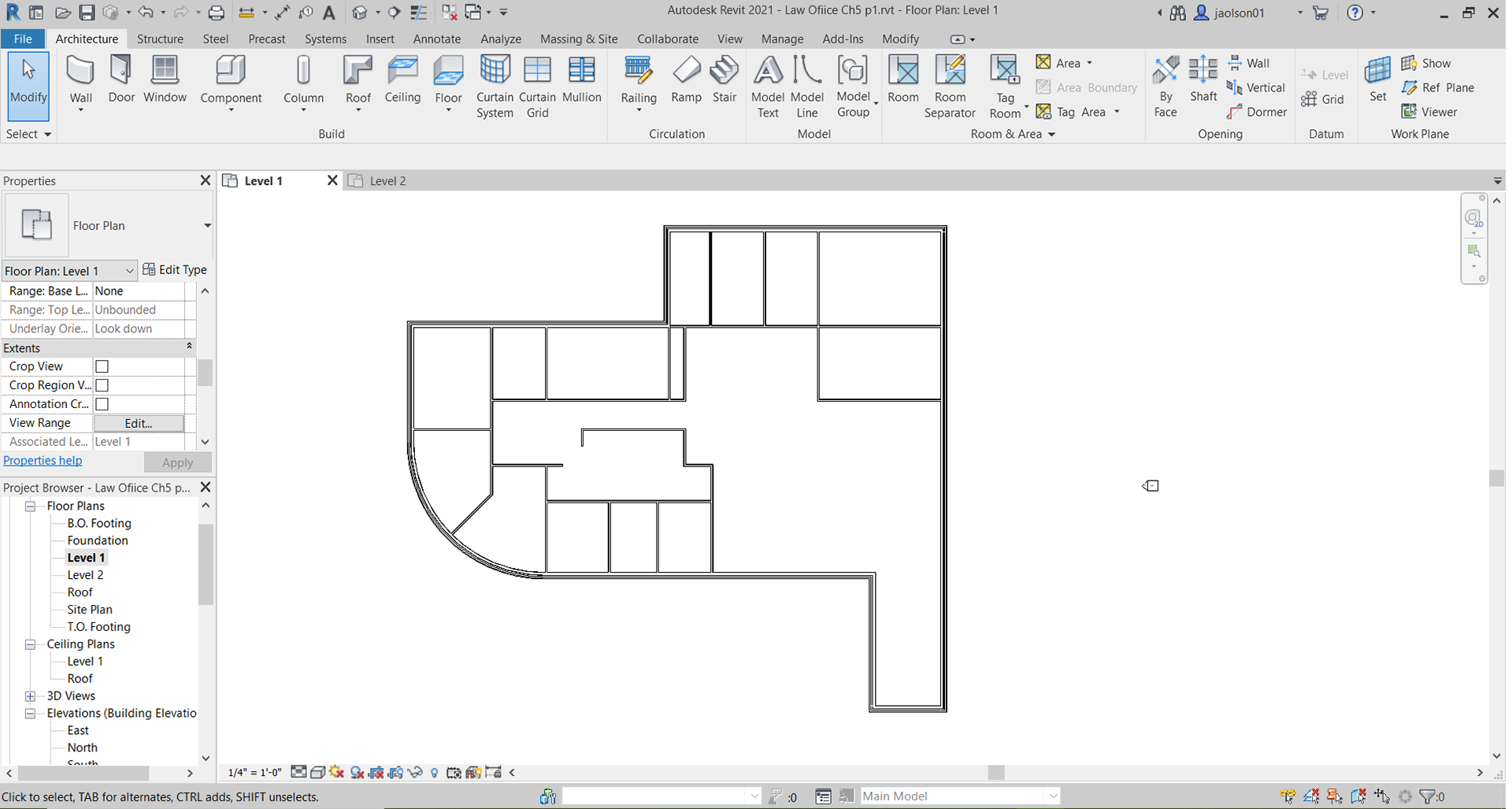

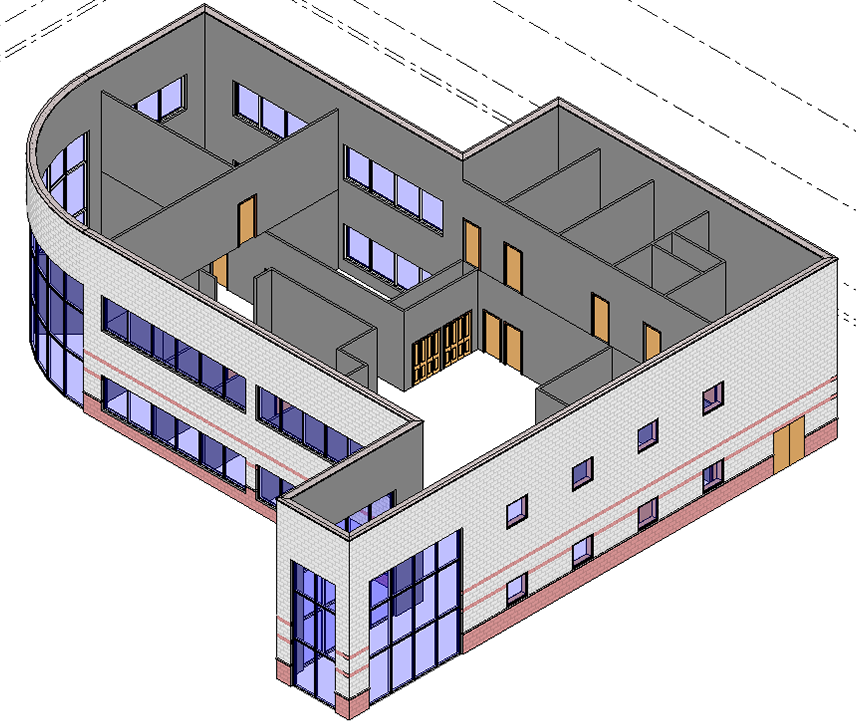

The first step was to add walls, then all the windows and doors shown to the right

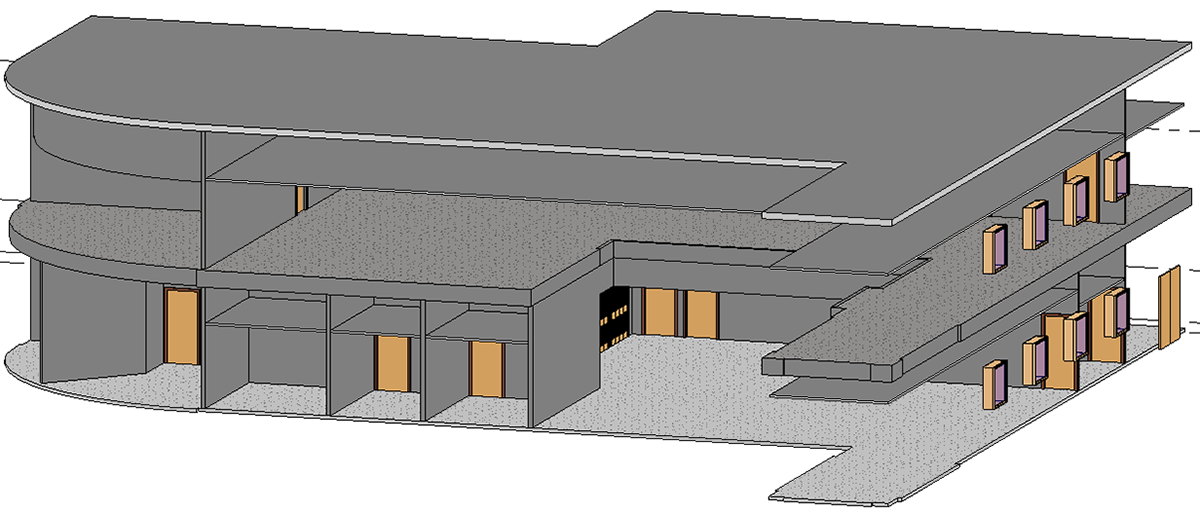

With the walls hidden its easier to see the layers for the floors and the ceilings

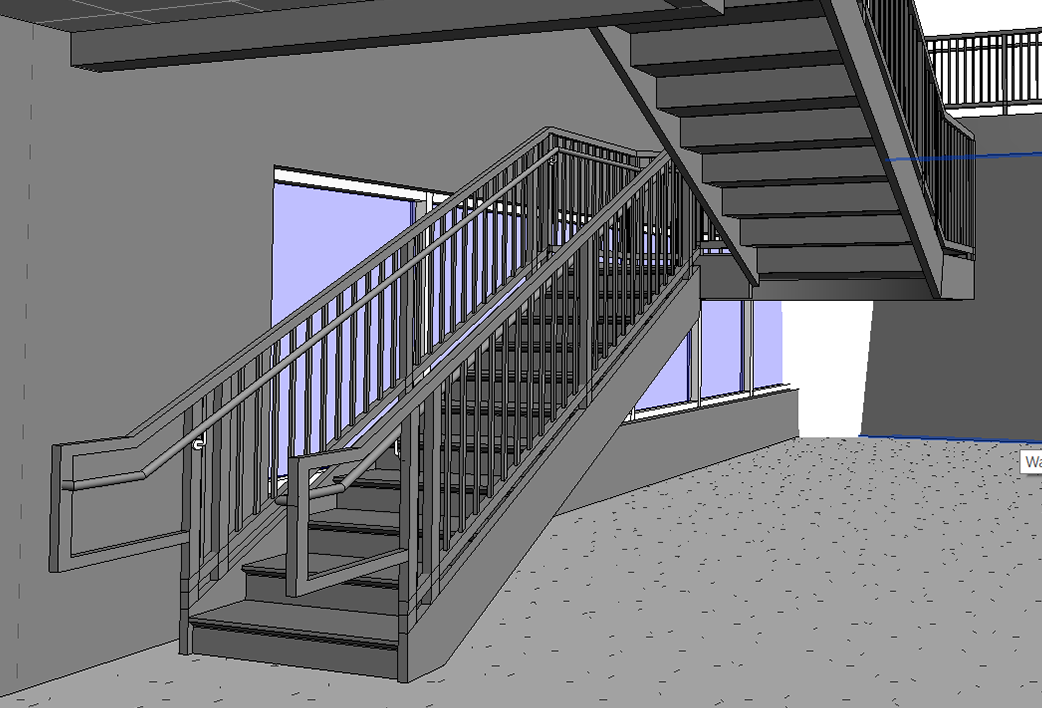

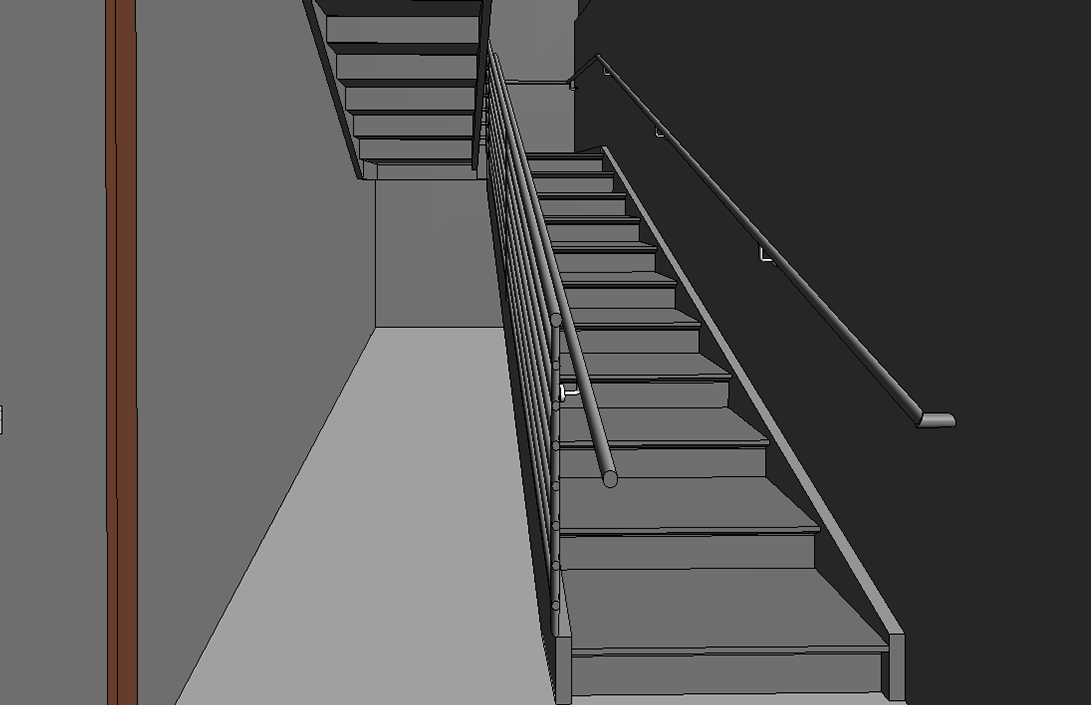

There were two sets of stairs to put in to practice different styles of construction and railings

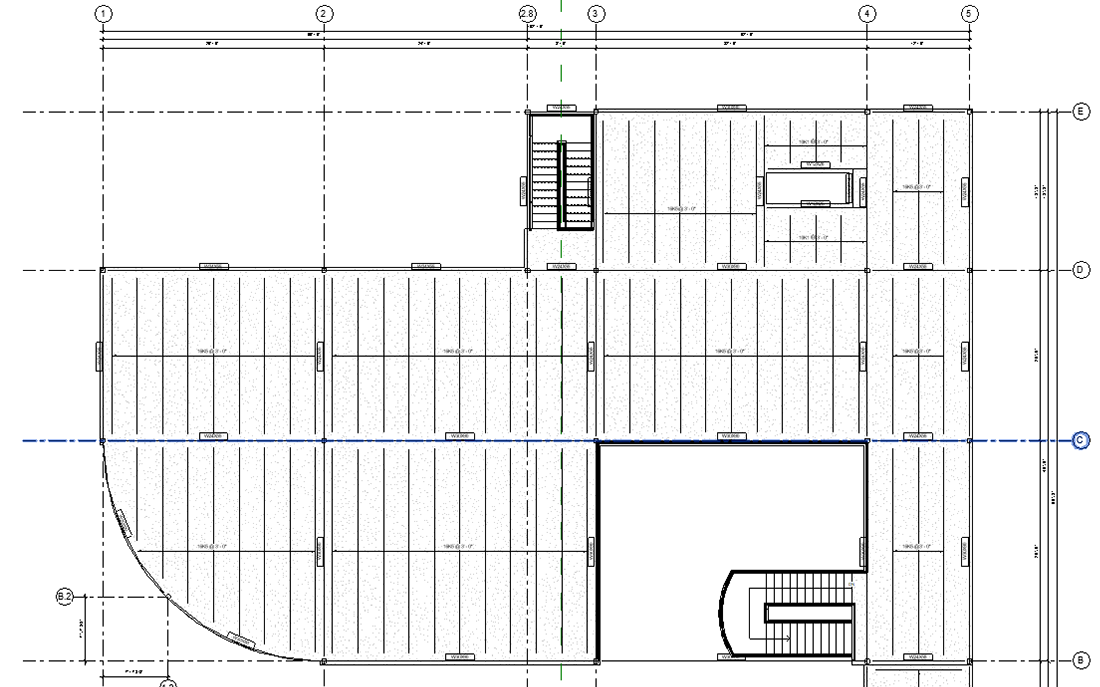

At the very top here are two plan views for the structural framing and foundation. below those is a rendering of the structure.

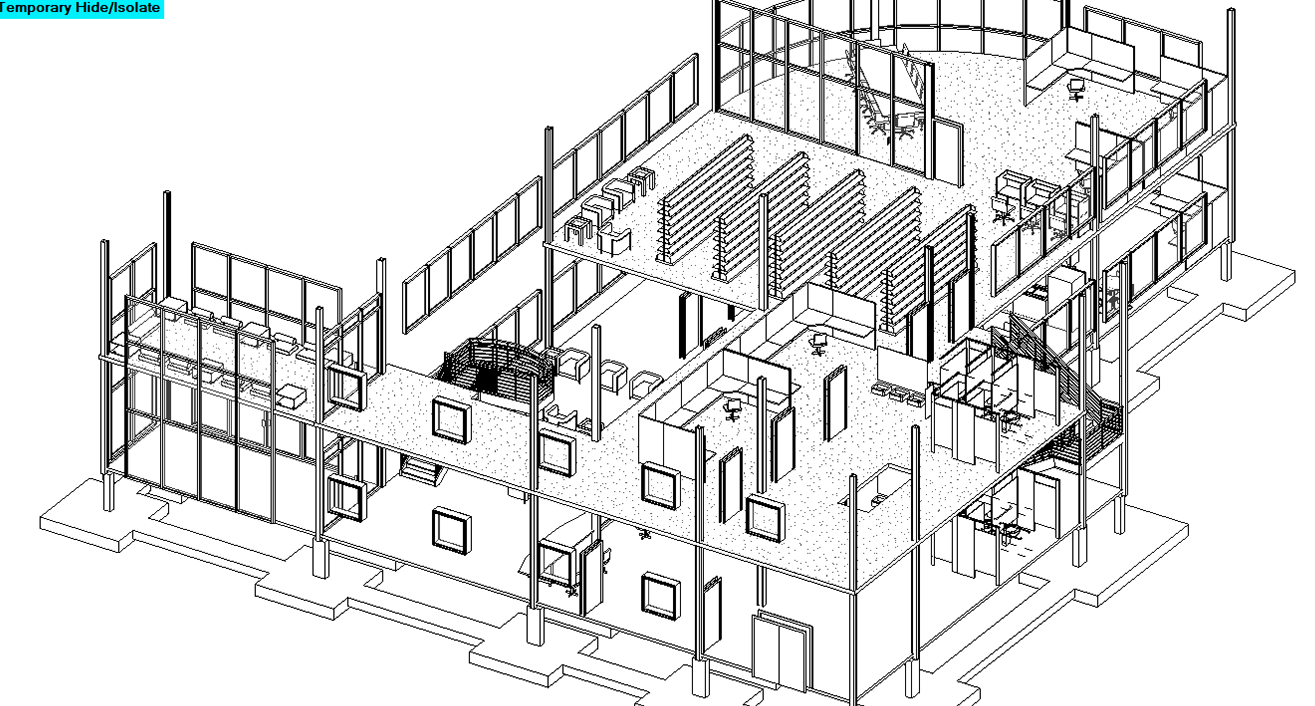

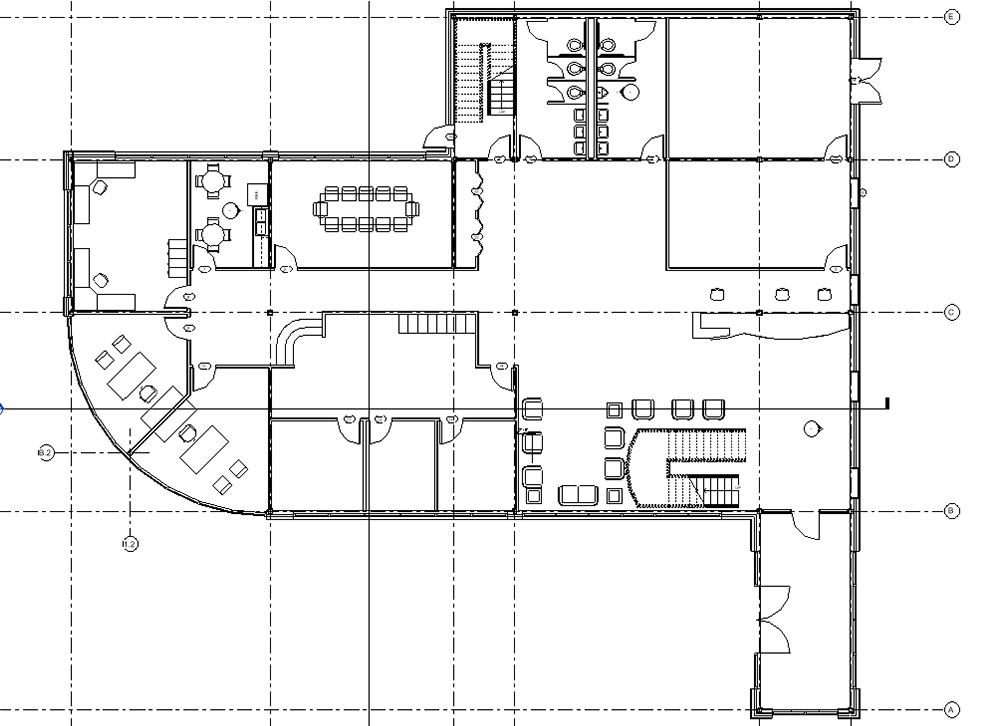

Using the libraries that came with Revit and some extra files from the books publishers the office was filled with furniture

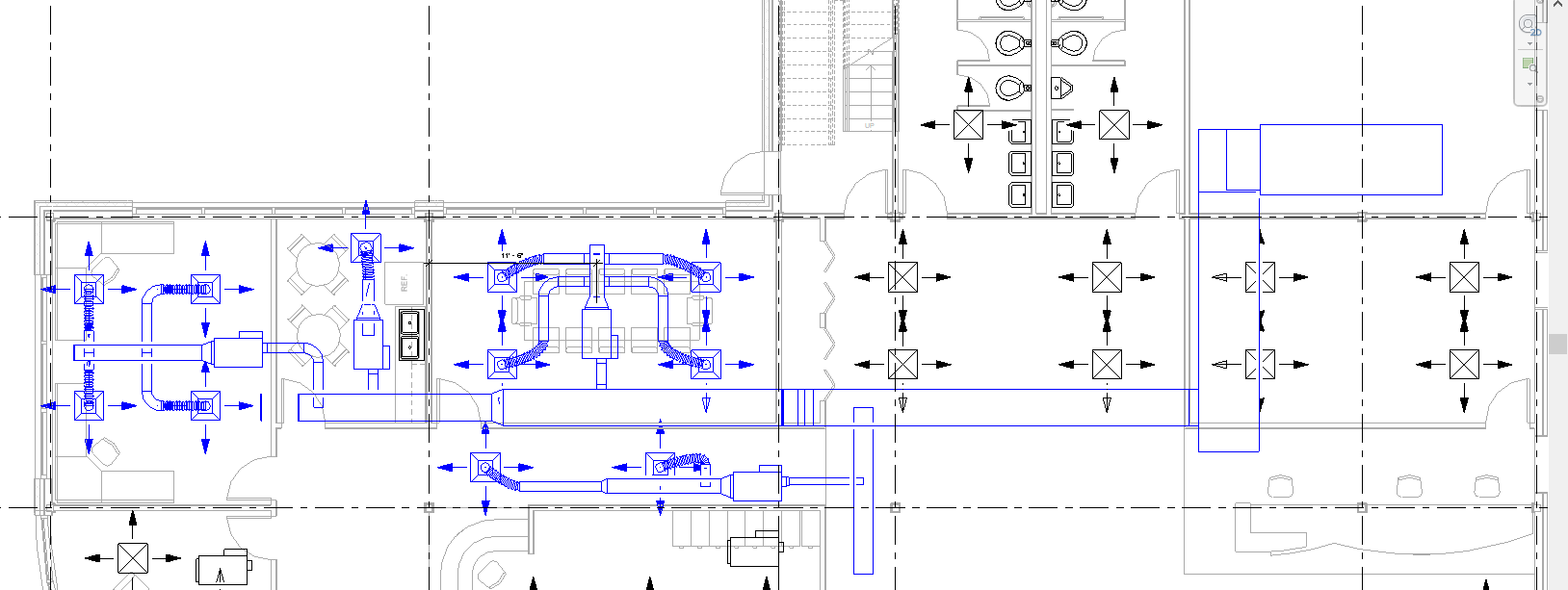

To practice the tools the HVAC system was set up to a few rooms on the first floor. We did not do the whole office due to time constraints

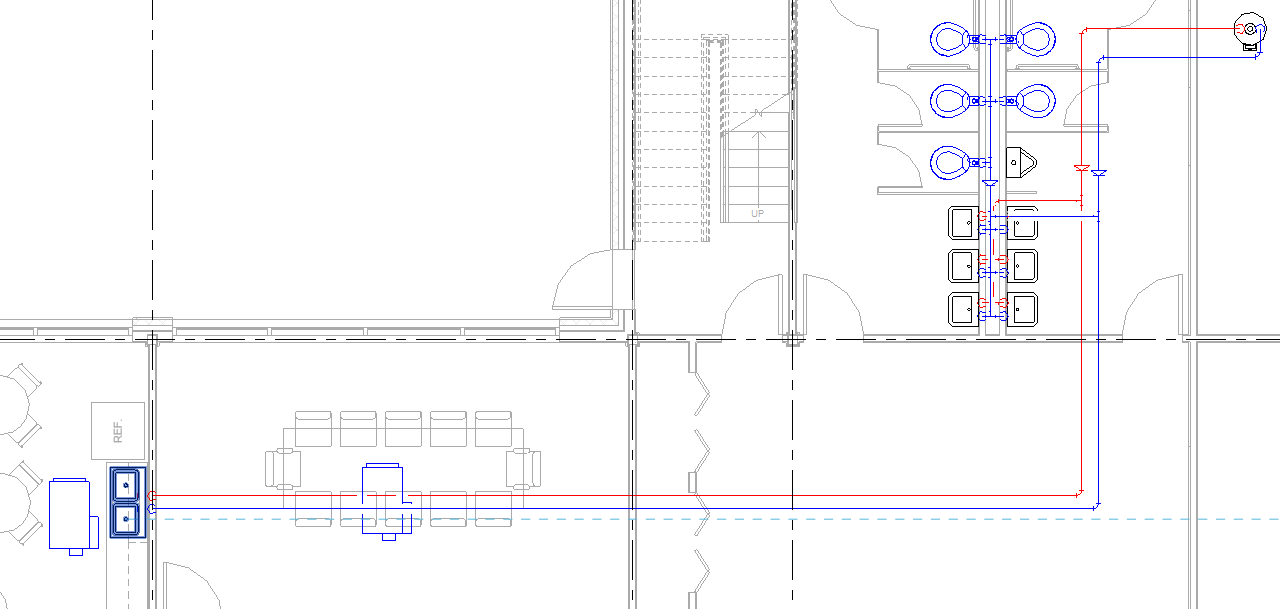

The break room and main bathroom were plumbed with hot and cold water. We did not do the rest of the pulmbing.

This is a small walkthrough of part of the inside. This was not part of the assignments, but I made it to learn the tools a bit more.
