Autocad Project: Bathroom Remodel

this was the final project for my first formal class in autocad. I wanted to do something architectural and I chose this project because We want to make our childhood bathroom into a more mature guest bathroom. I created a floor plan and elevation views of my current bathroom. I then used it to plan out the remodel that will be completed summer 2022. CAD work was done Summer of 2020

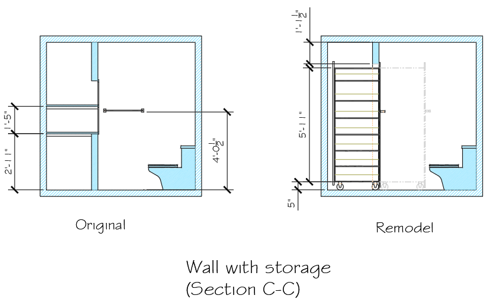

Above are what I drew in the design space in Autocad on the left is the what the bathroom currently looks like images of the Actual bathroom are below. The right images are of the planned remodel to be completed at a later date.

Wall Color

Tile for Shower and Backsplash

Tile for the floor and vanity top

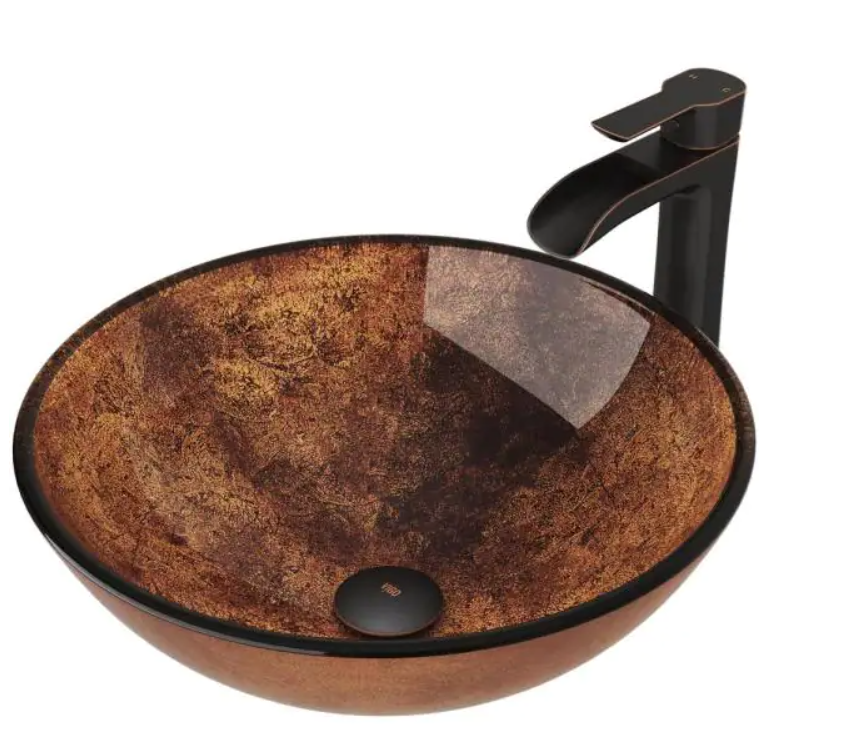

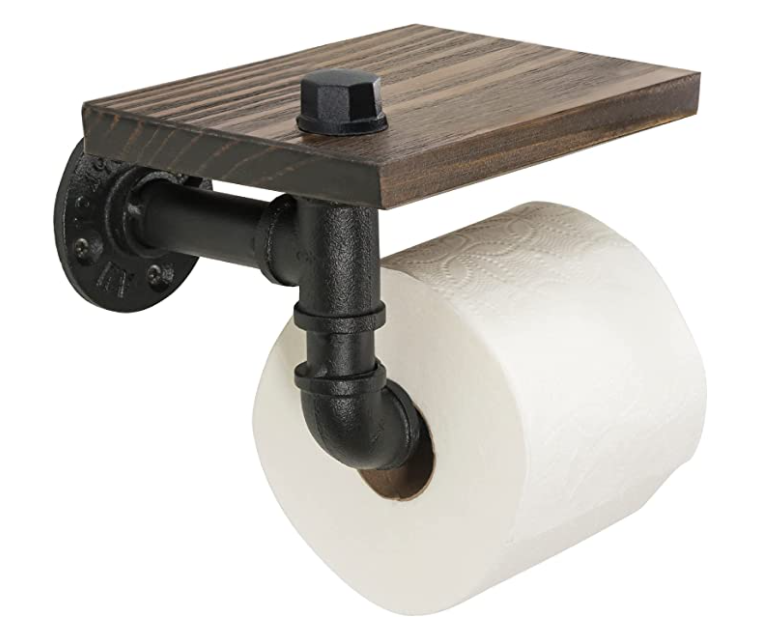

This is a spread of items for the remodel to show the style and theme that we will be using for the remodel. these are just ideas and the final decisions may not be identical but they will be similar.
