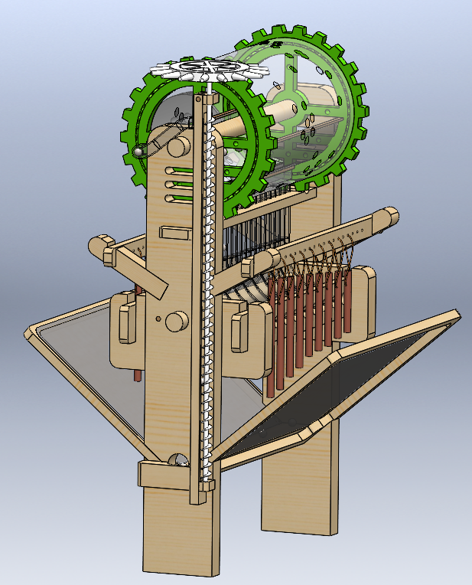

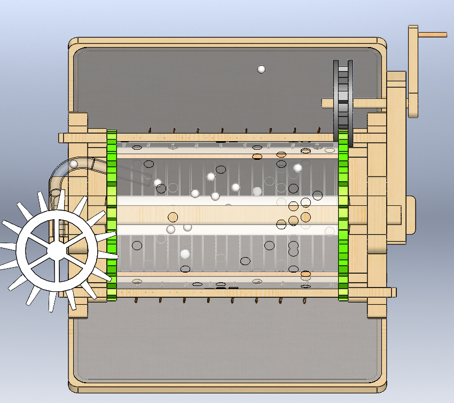

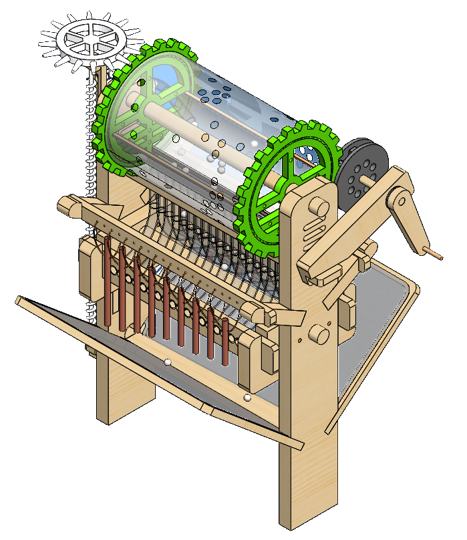

The full model, there are some balls in random places to show where they should be.

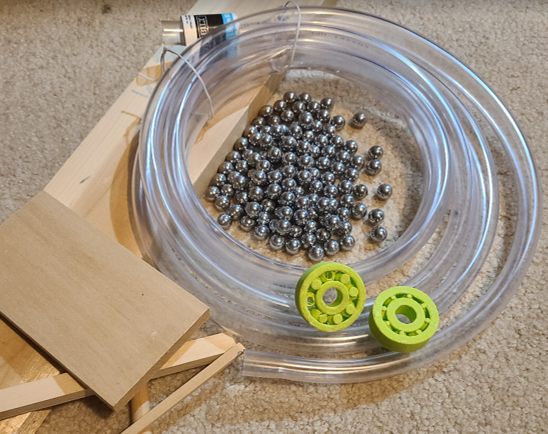

This was designed around some supplies that I already had and parts that I could 3d print
This shows the screw spinning and a ball moving up it. I made this motion capture to test the spacing of the screw to the channel until I got it right.
The chimes were designed with the help of a chime expert online. In theory these will all play the correct notes, but until they are tested in real life this is unknown.
This shows and explode view of the machine and all the pieces that would go into it.

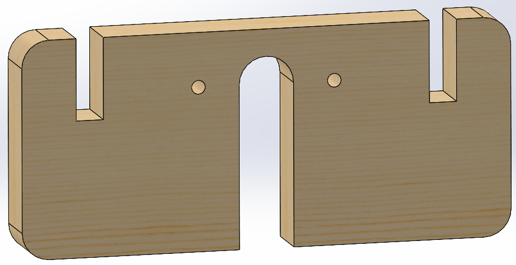

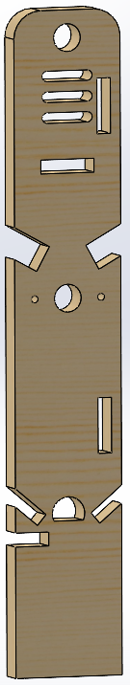

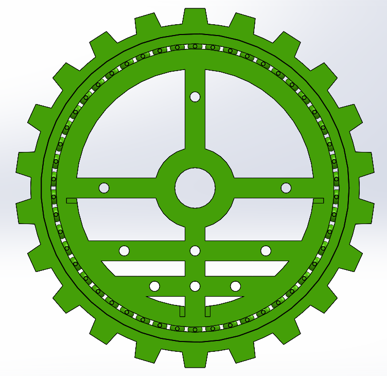

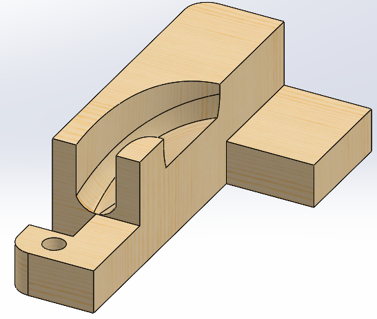

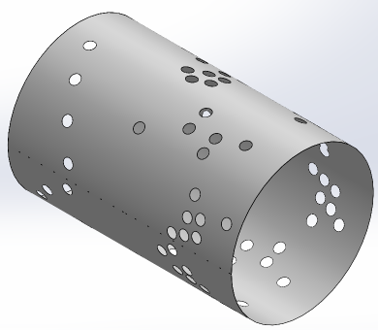

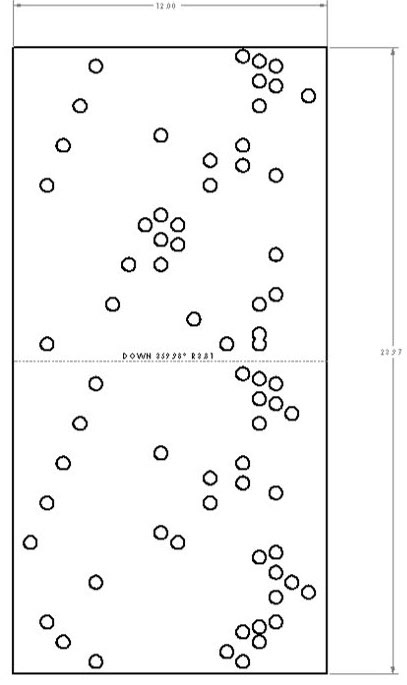

Above are some of the individual parts. Anything made of wood is meant to be cnc cut and the colorful parts would be 3d printed in abs plastic.

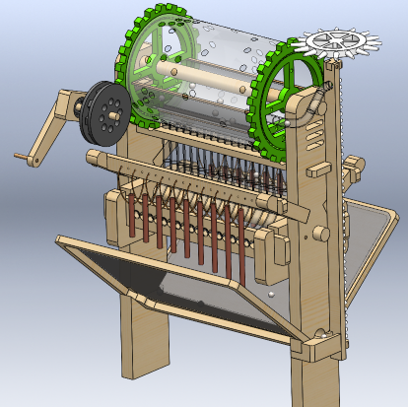

To end here are a few more views of the entire machine
