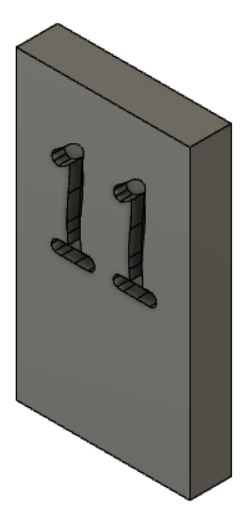

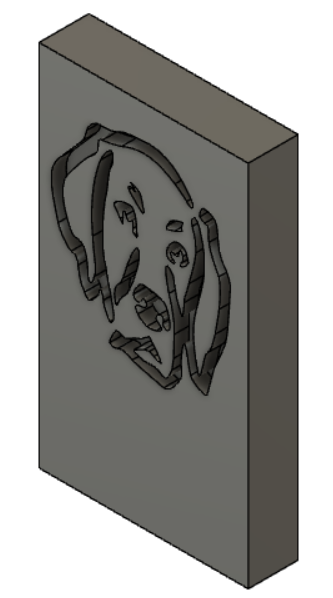

A couple of the tiles modeled in Fusion 360

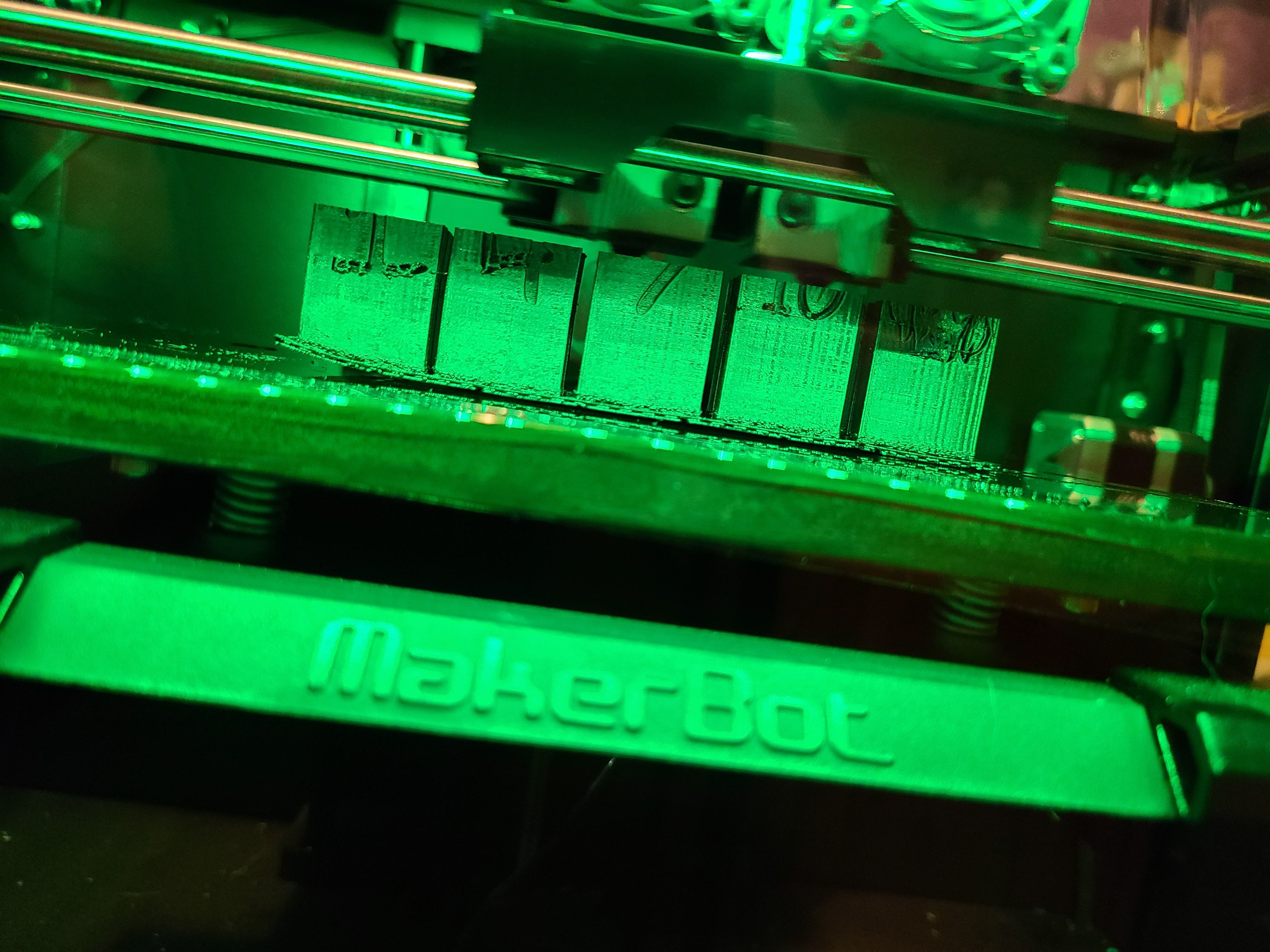

A set printing on my makerbot printer. This ended up failing as you can see on the edge its popping off the plate. I ended up printing them one by one
A short video showing how smooth you can get 3d printed objects with some sanding

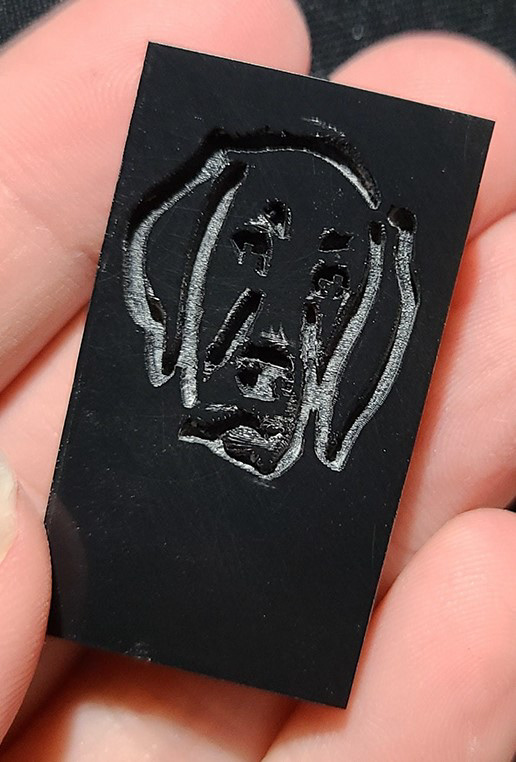

The Dog tile master all sanded and polished
All the polished tiles ready to get silicone poured over them. I added the hot glue to save a little bit of silicone
The two layers of the tiles in their molds still. Plus some dice I put in the pressure pot with the first batch

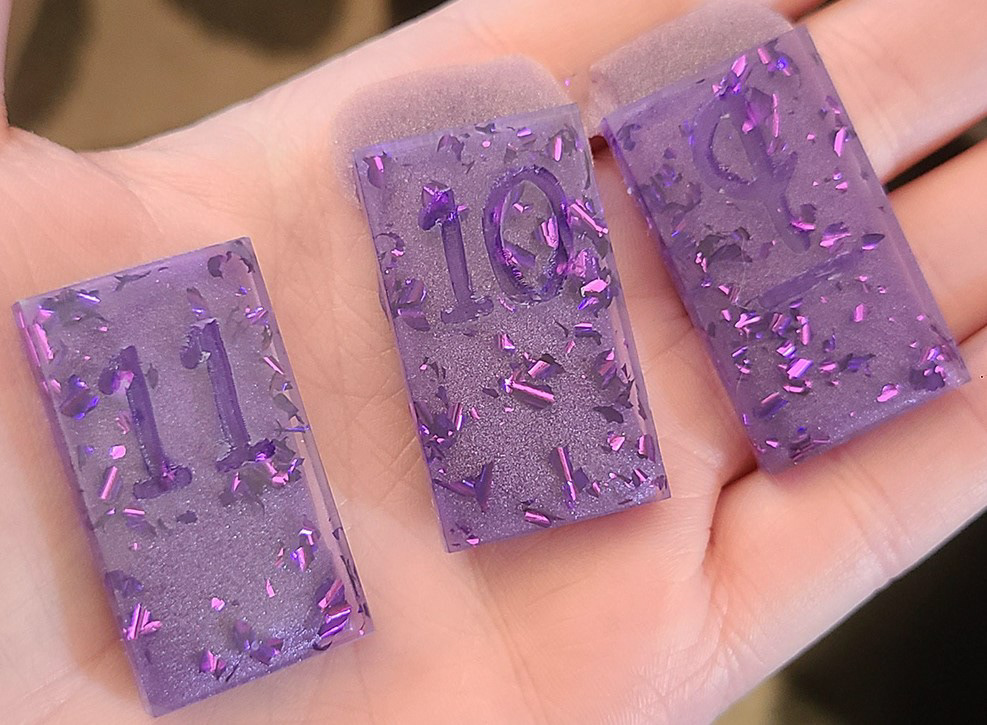

Close ups of the tiles before sanding and polishing. Having well polished masters makes a nicer finish on the resin ones, so less clean up work will be needed.

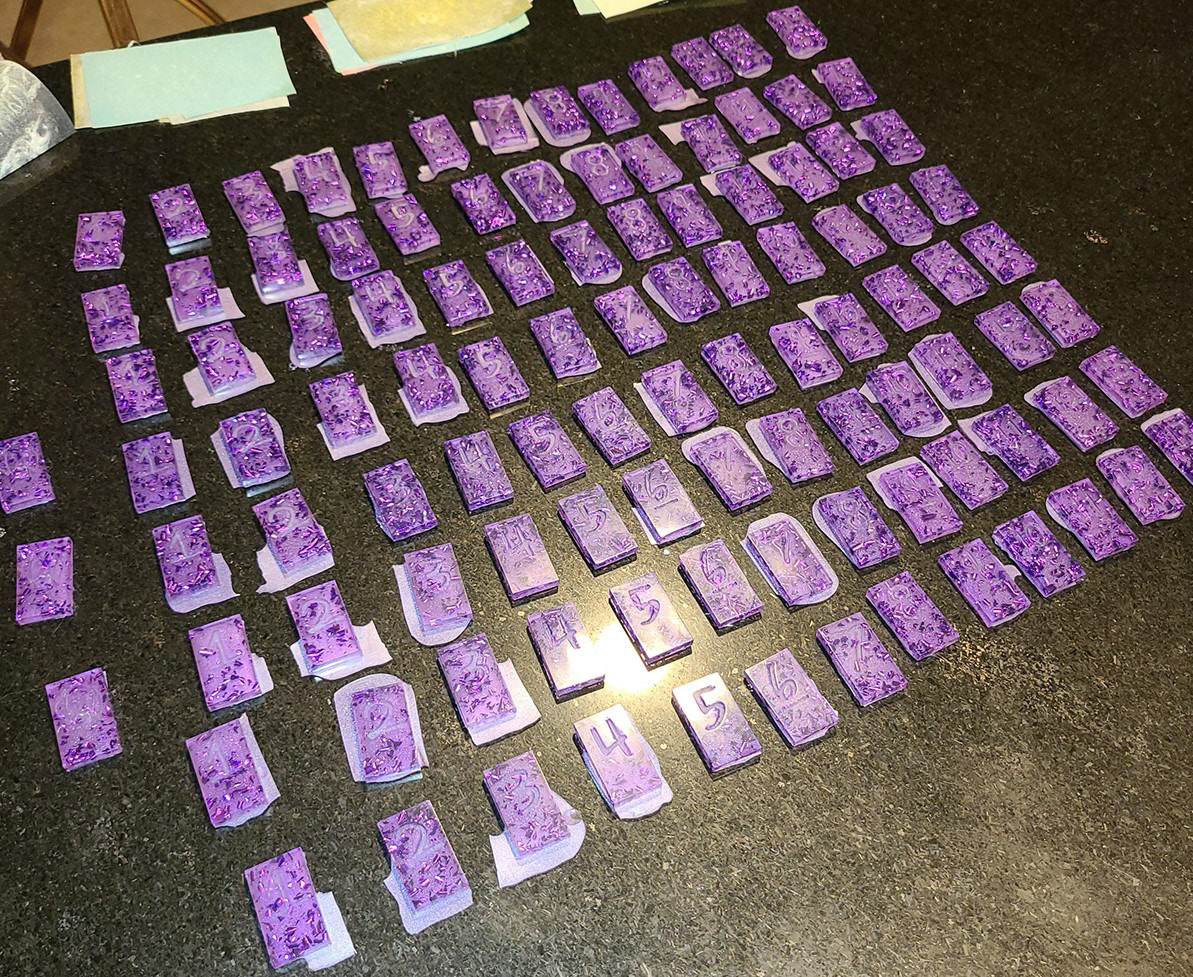

The field of tiles completed, The friend I made them for took them at this point and did the sanding and inking of the numbers
